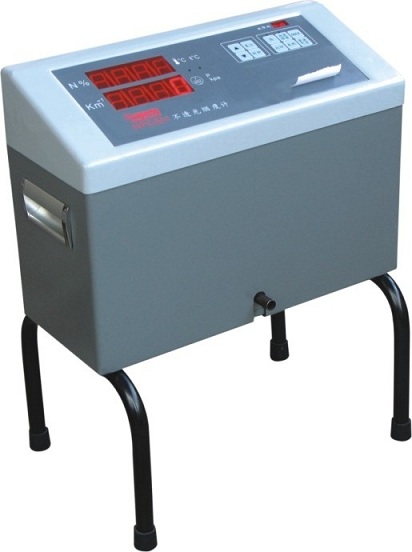

HPC601 Portable Opacimeter

Main Features:

◆Integrated Structural Design
◆Adopted a triage-type sampling technique, diesel engine acceleration, deceleration, and steady speed can be measured when the smoke
◆Linear automatic data processing, can be displayed opacity degrees N, light absorption coefficient K and the corresponding value of filter paper-type smoke SF
◆High-brightness digital display;
◆Use of "air curtain" technology to protect the optical system from pollution
◆Automatic detection of room temperature control, anti-condensation can affect the testing accuracy
◆Automatically attached to the time display, and optional speed measurement and oil temperature measurement
◆Show where the failure of automatic diagnosis unit;
◆Equipped with built-in printer (or digital RS-232A interface or analog interface)

◆In line with ISO11614 and GB3847-2005 technical requirements.

Main technical parameters:

Test Scope：No light transmission N:0～99.9% (equivalent to smoke value 0~10FSN)

Light absorption coefficient K:0～16.06 m-1

RPM：0～9990rpm OIL TEMP: 0～150℃

Indication error: ≤±2% ( measured value)

Stability:moment drift≤±1%/4H

Repeatability ≤±1%

Resolution: N:0.1%, K:0.01m-1 ,RPM:10rpm, OIL TEMP:0.1℃

Output mode:digital direct reading, can be attached to the printer to print the smoke concentration ( darkness) maximum value, test time, date. Can interface with computer networking

The measurement chamber temperature:

70 ℃ (automatic), when the temperature error of ≥± 10%, temperature and error indicator light

And-use temperature: -5~50°C, Relative humidity: ≤90%

Power: AC100~240V 50/60Hz or DC12V, Power consumption: 150VA

Dimensions ( including bracket) :160 ( L)×400(W)×480 (H)mm

Weight: 8kg
