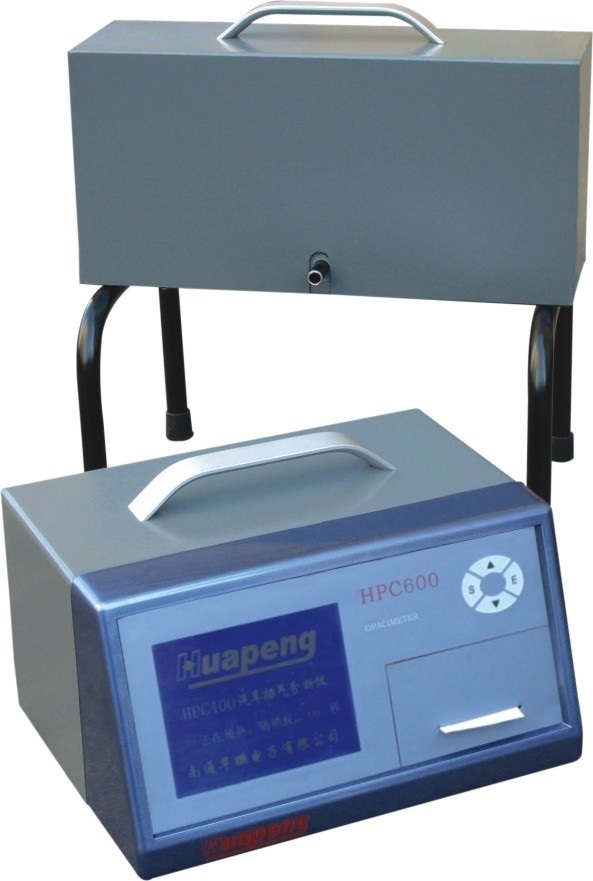

HPC600 opaque smokemeter |
Main Features: ◆Separated structural design, operation more convenient and more accurate data can be measured when the smoke; coefficient K and the corresponding value of filter paper-type smoke Sf Main technical parameters: Test Scope:No light transmission N::0~99.9% (equivalent to smoke value 0 ~ 10FSN) Light absorption coefficient K:0-16 .06 m-1 RPM:0-9990rpm OIL TEMP: 0-150℃ Indication error of +/- 2% ( measured value) Stability of automatic zero adjustment, moment drift less than+/-1% / 4H Repeatability repetition error of +/-1% Resolution: N:0.1%, K:0.01m-1 ,RPM:10rpm, OIL TEMP:0.1℃ Output mode liquid crystal display, can be attached printer ( dark smoke concentration degree maximum ), real-time curve, test time, date. Can interface with computer networking Measurement of smoke temperature of 70 degrees C ( automatic thermostat ), when the temperature error +/-10%, temperature and error indicator light Environmental conditions of temperature -5 to 50 DEG C, relative humidity 90% AC100-240V 50/60Hz 150VA power source power consumption Dimensions ( including bracket) control portion of the 240mm (L) x 310mm (W) x 170mm (H) Light path part 130mm (L) x 400mm (W) x 390mm (H) Weight control section 4kg Light path part 5kg |
