Main Features:

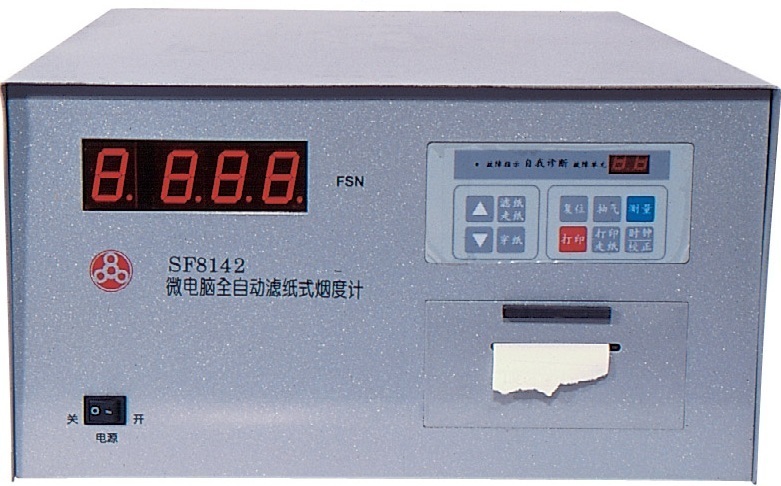

Automatic filter paper-type smoke meter for diesel vehicles free of tobacco smoke accelerate the state measurement. Auto-complete measurement of the whole process automatically 1,2,3 times measured values and their average, high-brightness LED display, with a time display, automatic fault diagnosis shows there where the unit can be equipped with built-in printer (or digital RS-232A interface or analog interface)

Main technical parameters:

Range：0 ~ 10FSN
Indication error：≤ ± 3%
Repeatability：Repeat error ≤ ± 2%
Stability：Zero drift ≤ ± 3%
Exhaust volume sampling system：300 ± 15ml
Tightness：≤ 15ml/min
Effective working diameter of filter paper：30.7mm
Pumping action time：1.4 ± 0.2s
Environmental conditions：Temperature 5 ~ 40 ℃, relative humidity ≤ 90%

Power ：AC220v ± 10% 50Hz Power consumption 150VA
Dimensions： 520mm (length) × 360mm (width) × 200mm (H)
Weight：about 30kg
