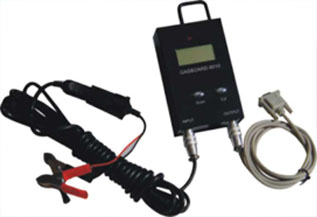

8010 general speed sensor |
Product type: Gasboard-8010 Function characteristics Gasoline, diesel, the suitable for natural gas engine speed measurement It can directly from the cigarette lighter or accumulator is connected after the measurement speed, do not need any sensor The RS232 interface and LCD display It can be connected to gasboard series exhaust and smoke analysis equipment Simultaneous with standard signal is connected with other equipment manufacturers Technical index ◆ power: cigarette lighter or battery power supply +9V — +15V DC ◆ the current: 500mA ◆ reverse connection protection ◆The measuring object: 2, 4 stroke, 1 cylinder 12 ◆The measuring range: 400 - 9999RPM ◆The maximum error: 2000 turn the following ∠ 15RPM Other cases of ∠ 2% ◆ response time: 0.4S ◆The test data update rate: 5 times per second ◆ the initialization time: 15S ◆ working temperature: 0 - 45 ° C ◆ size: 144 x 98 x 40mm ◆ weight: 350g |
