Measurement Range 0 - 100 % Oxygen
Output voltage (new sensor) 7-13 mV, dry ambient air
Temperature Compensation built in
Response Time a) < 5 seconds to 90% of final value,
b) < 40 seconds fall time from 21% O2 to 0.1% O2
(when 100% N2 applied)
Accuracy 0 - 2% oxygen ± 0.1% absolutev
2.1 - 25% oxygen ± 5.0% relativev
25.1 - 100% oxygen ± 10.0% relative
Cross Interference: less than 0.1% O2 response to:
15.0% CO2 balance N2
10.0% CO balance N2 Sensor Outline Drawing
3000 ppm NO balance N2
3000 ppm C3H8 balance N2
Zero Offset Voltage less than 40 μV in 100% N2, applied for 5 minutes
Recommended Load (instrument) ≥ 10 k Ohms
Operating Temperature. 0...50OC
Recommended Max. Storage & Tem 3 months / Temperature +5 OC...15OC
Operating humidity up to 95% RH
Weight approximately 30 grams
Expected life approximate 33 Months at 20.9 % O2, (Air) **
Approvals PTB AUII /Meets BAR 97 requirements

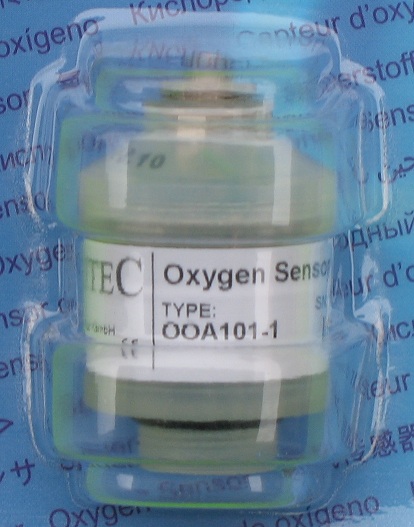

Part Numbers, Electrical Interface Type OOA101-1 3.5 mm Mono Jackv
